Road Wheelset

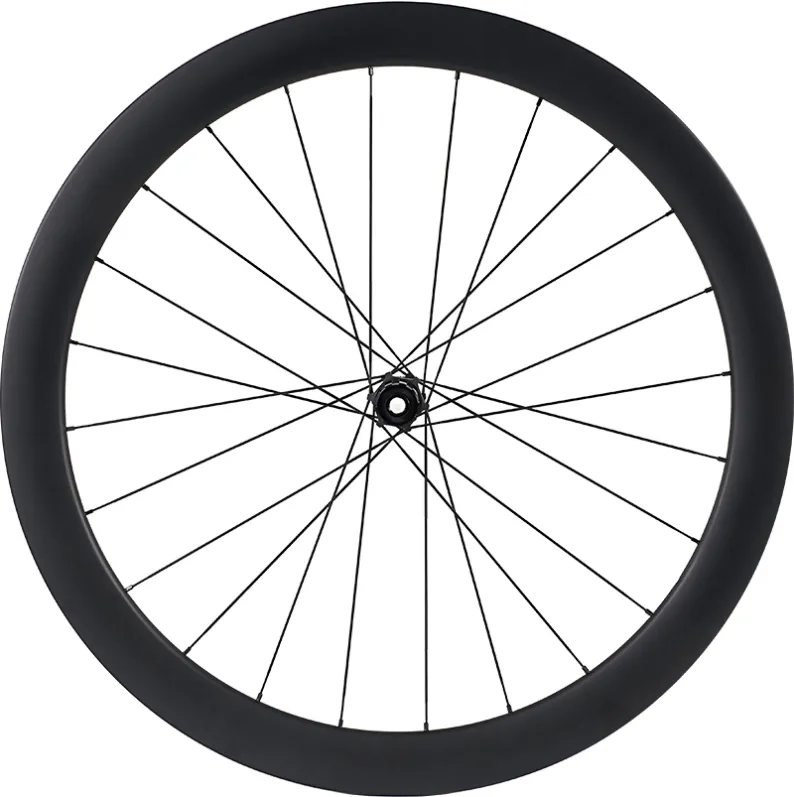

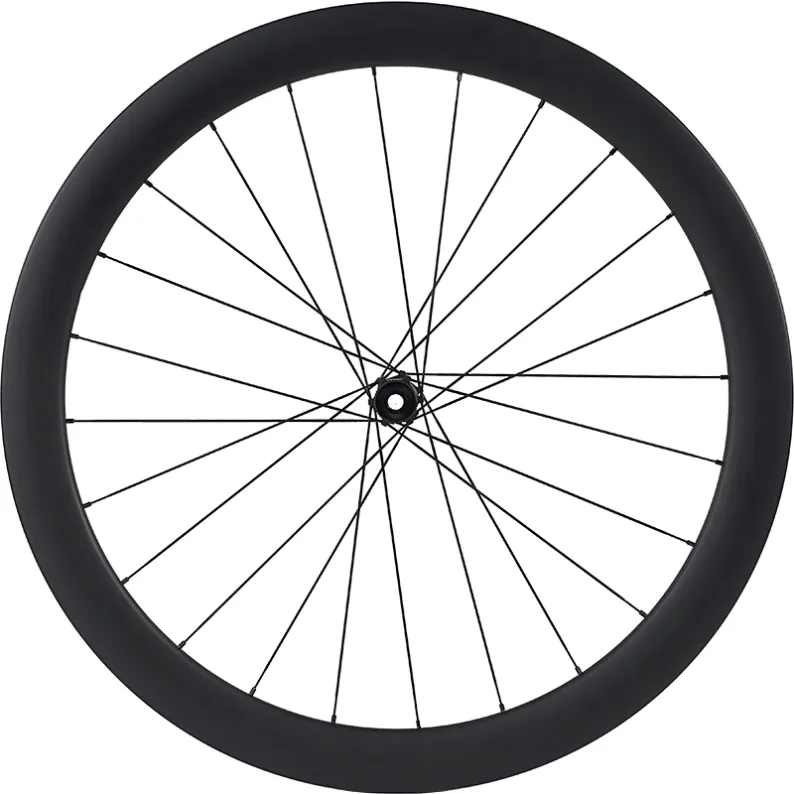

A1-BT 5025-1732-K Carbon Disc Brake Road Wheelset
A1-BT 5025-1732-K full carbon road disc wheelset, 50mm rim depth, 19-25mm internal-external width, tubeless ready. Center lock disc brake, 24 holes straight pull 14G steel spokes. Front 100×12mm / Rear142×12mm thru axle, Shimano HG 36T DT ratchet. Total weight 1732g±3% (without rim tape). Custom paint & logo available, OEM wholesale.
Specifications
- Material
- Carbon Fiber
- Rim Depth
- 50 mm
- Rim Width
- Inner 19mm / Outer 25mm
- Rim Finish
- Matte Black (default)
- 50mm depth full carbon rim, great aerodynamics for road racing
- Tubeless ready design, better puncture resistance and lower rolling resistance
- Center lock disc brake system, stable braking performance
- Front 2 / Rear 4 premium bearings, smooth rolling & long service life
- DT 36T ratchet freehub, fast engagement, compatible with Shimano HG
- Straight pull flat steel spokes, high strength & balanced tension
- Total weight only 1732g±3% for the wheelset
- Custom color and logo support, OEM wholesale service

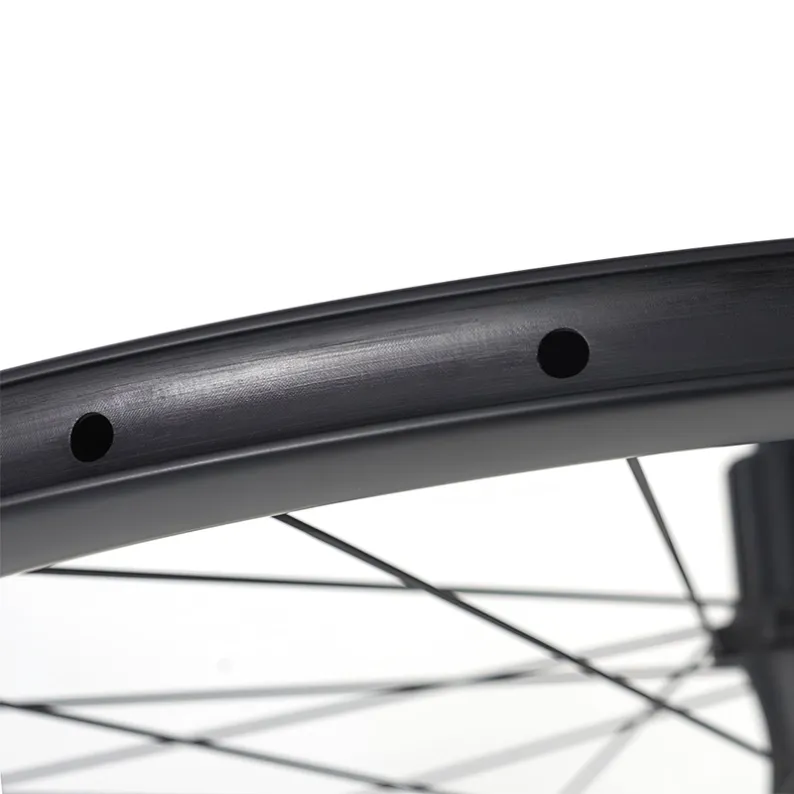

Rim Specification
Rim Weight Rim Depth
550g per rim 50 mm
Inner / Outer Width Tire Compatibility
19–25 mm Tubeless Ready (Default)
Finish
Matte Black (Default)

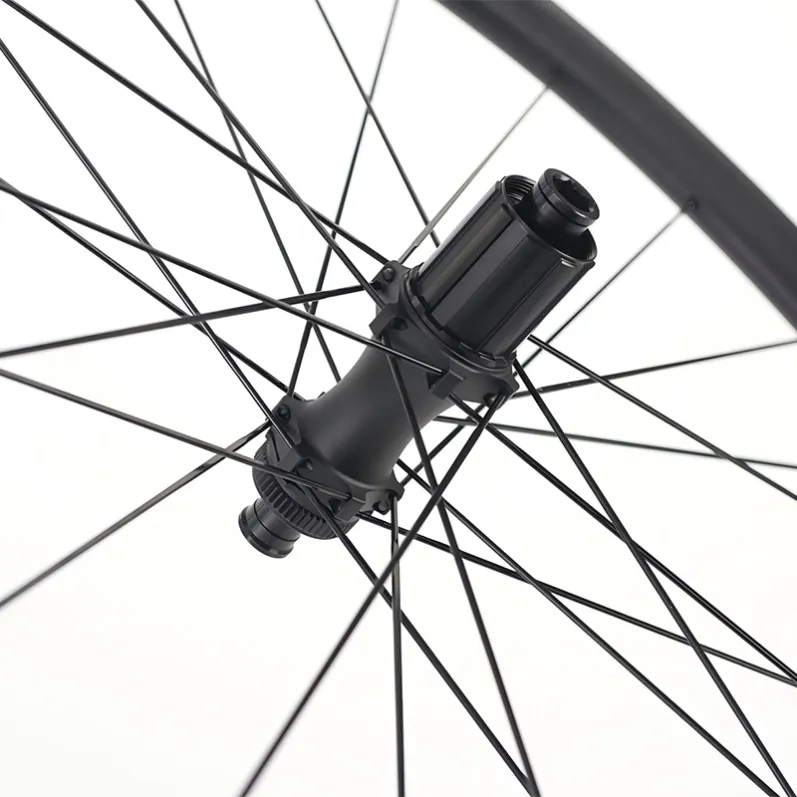

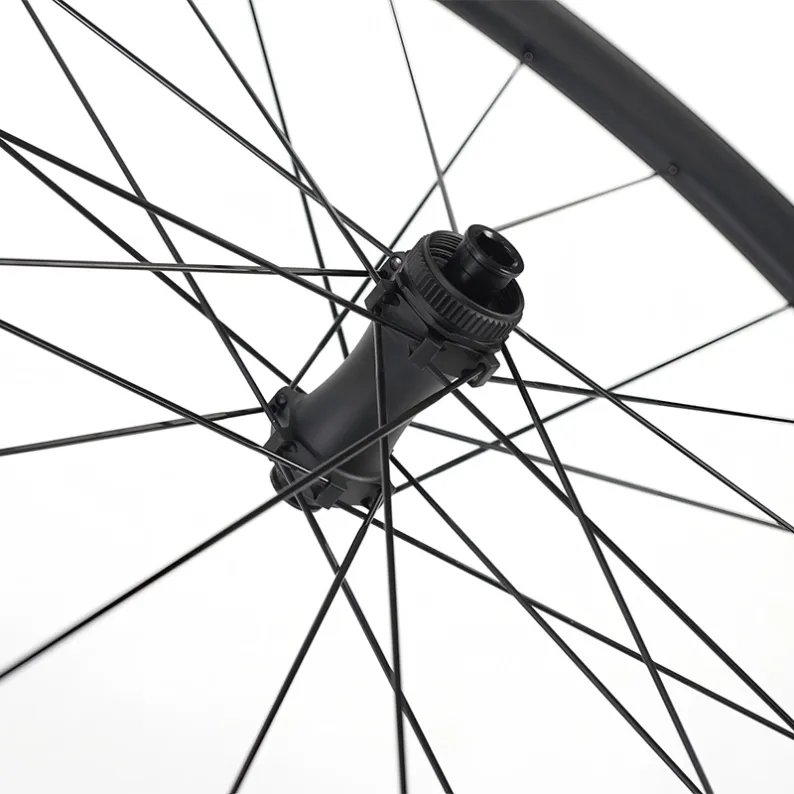

Hub Specification
Hub Spacing Axle
Front 100mm Rear 142mm 12mm Thru Axle
Brake Standard Spoke Hole
Center Lock 14G; Straight Pull; 24H
Bearing Quantity Freehub Structure
2 front, 4 rear bearings DT 36T Ratchet, Shimano HG Standard
Hub Weight
292g per pair
Spoke Specification
Material Spec
Steel 14G23; Straight Pull Flat Spoke
Nipple Specification
Material Spec
Aluminum Alloy DSN; 14G; Black
Total Weight: 1732g ±3% (Excluding Rim Tape)
Custom painting & logos available. Total weight on request.
