Gravel Frame
R56 Carbon Gravel Disc Brake Frame
BT-R56 full UD carbon gravel bike frame with disc brake. Full internal cable routing, T47 bottom bracket, 12mm thru axle, max tire 700*47C. Lightweight: frame 970g±40g (Size M). Frame + fork set available. Custom paint & OEM wholesale service.
Specifications
- Material
- Carbon Fiber
- Brake Type
- Disc Brake
- Frame Weight
- 970g ±40g (Size M)
- Fork Weight
- 410g ±15g
Type:Gravel bike frame-DISC BRAKE
Frame Model:BT-R56
Material:Full Carbon
Weave:UD
Frame weight:970g±40g(size M)
Fork weight:410g±15g
Headtube-Top:52mm
Headtube-Down:52mm
BB:T47
Cable Routing:Full Internal Rou
Thru Axles:142×12mm,100×12mm
Max Tire:700*47C

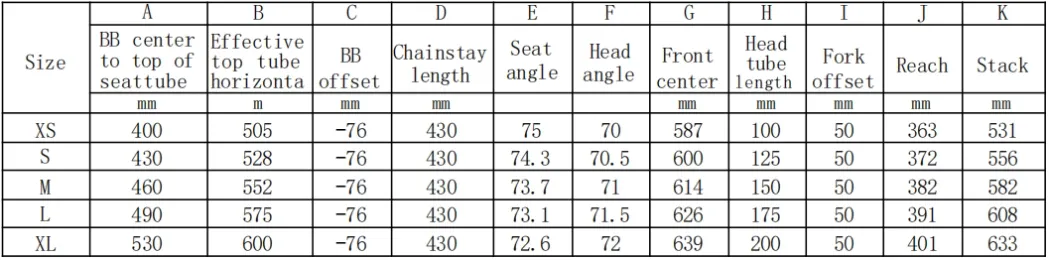

Available sizes:XS/S/M/L/XL
